VDA5050
Compatible with the international messaging standard — plugs into WMS/MES without a custom gateway.
600 кгPayload
VDA5050Protocol
12 чRun-time
24/7Operation
Two versions for the task
T600 is the standard cargo deck. T600 Underride is a flat chassis that slides under racks.

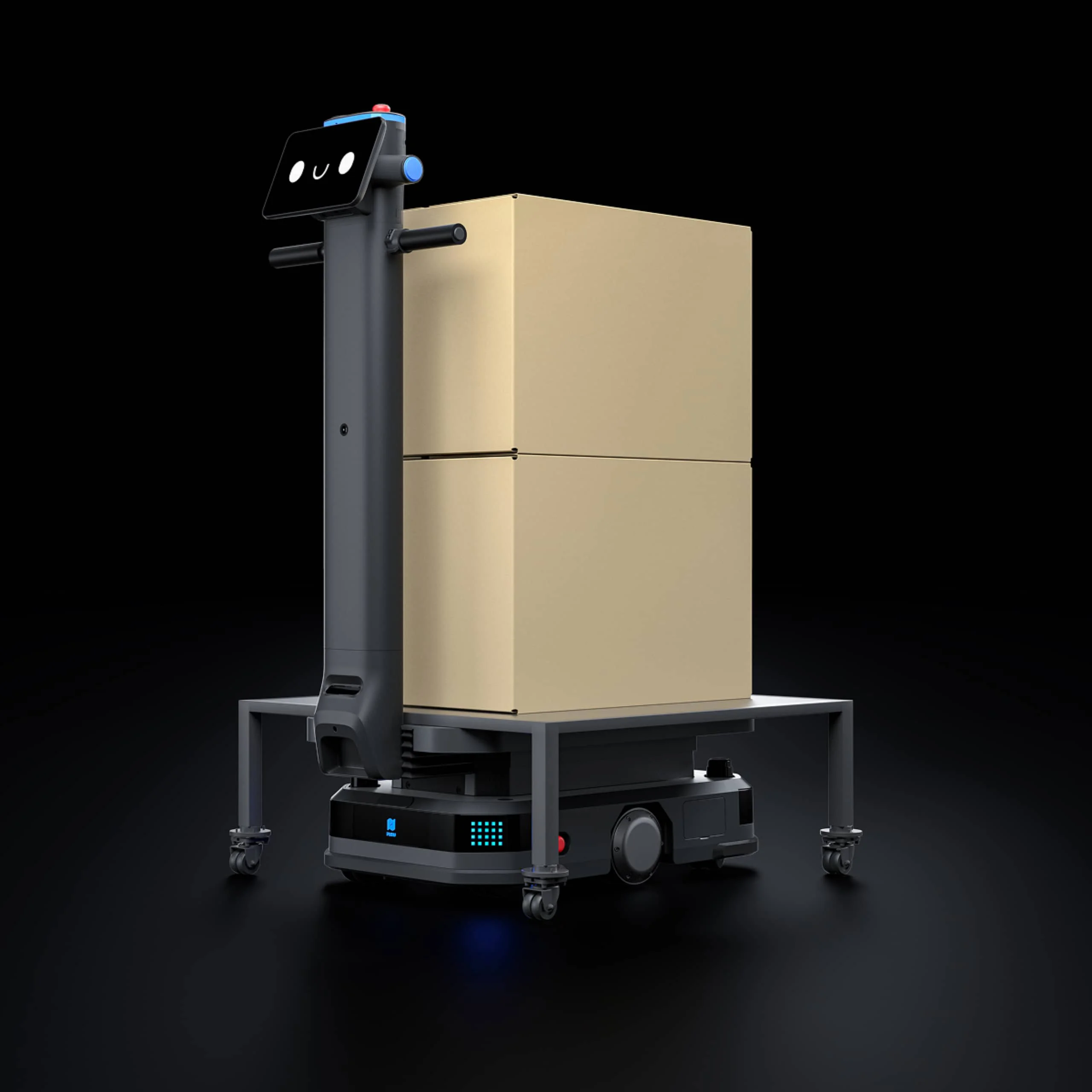

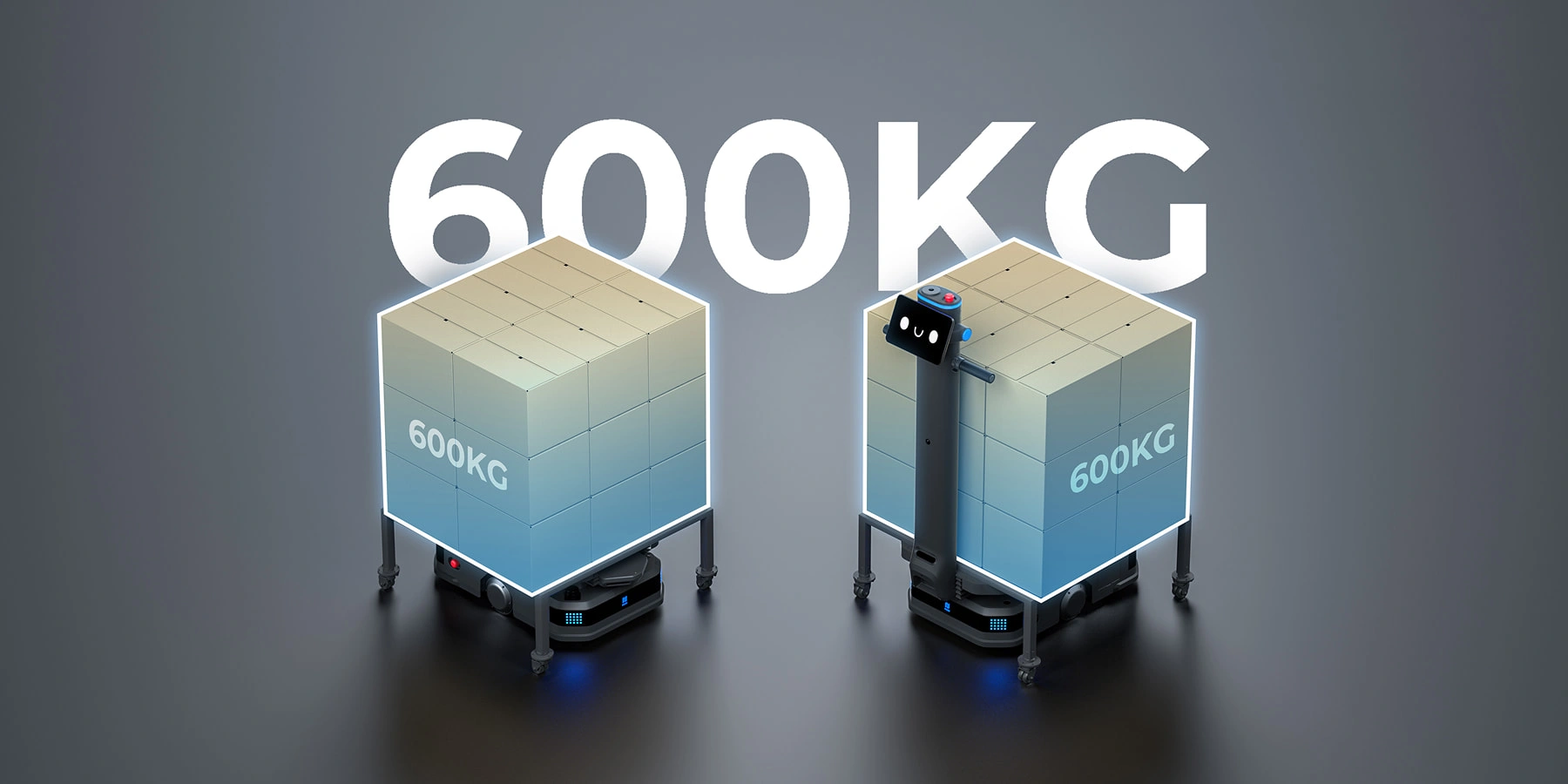

600 kg payload capacity
One robot replaces a chain of forklift trips across a plant.
600 kg
Heavy logistics without a separate forklift.

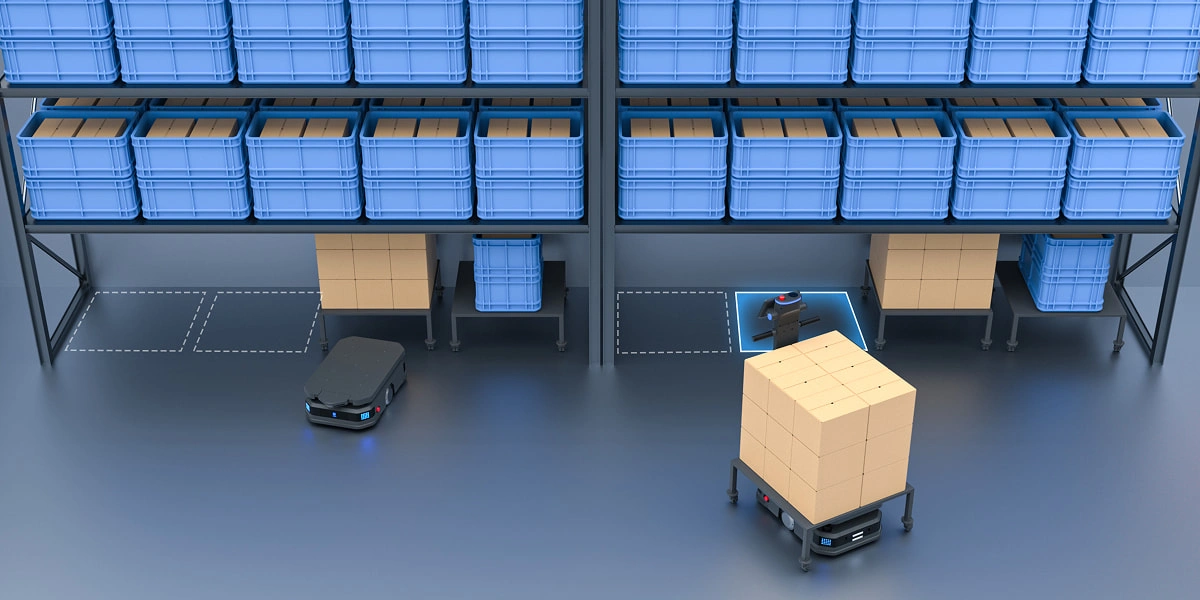

Rack group recognition
Navigation and AI perception identify the right rack group and pick the correct rack for the destination.

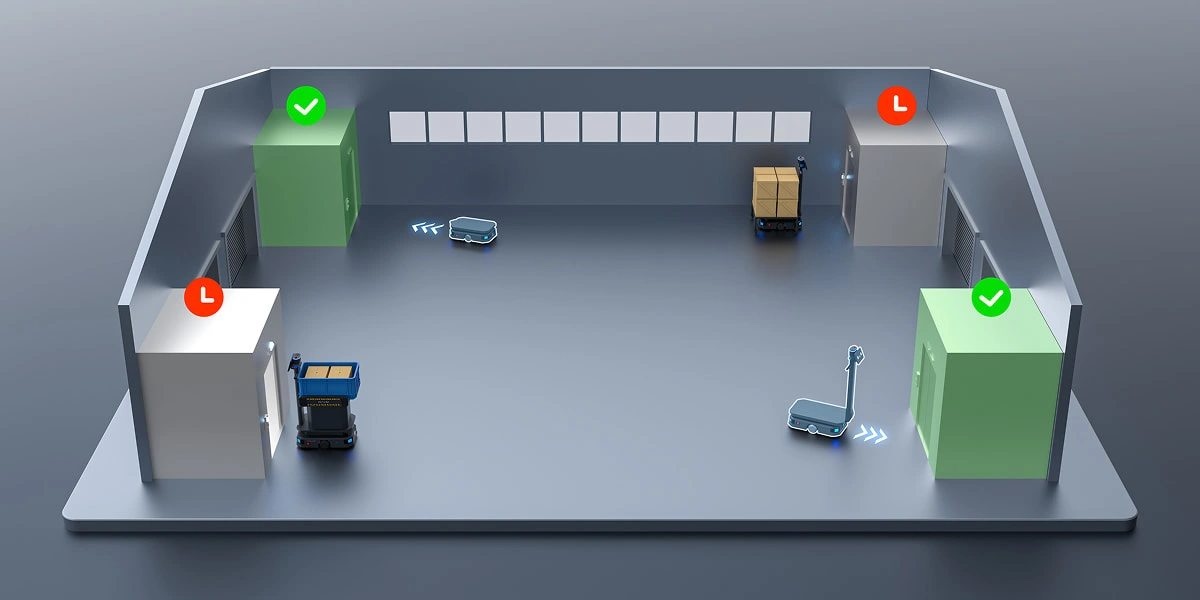

Idle-elevator priority
With multiple elevators the system calls the first free one — no queues or idle time.

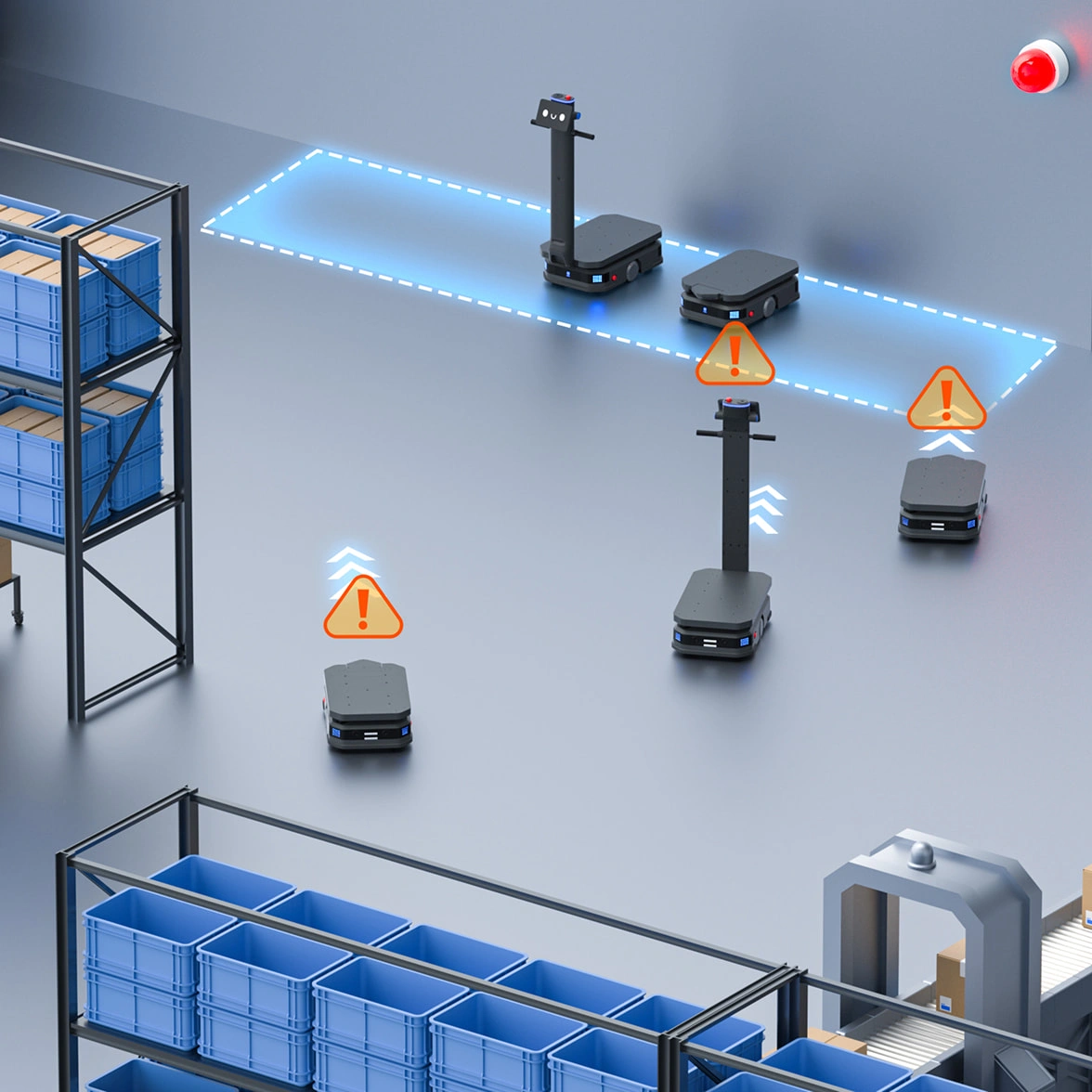

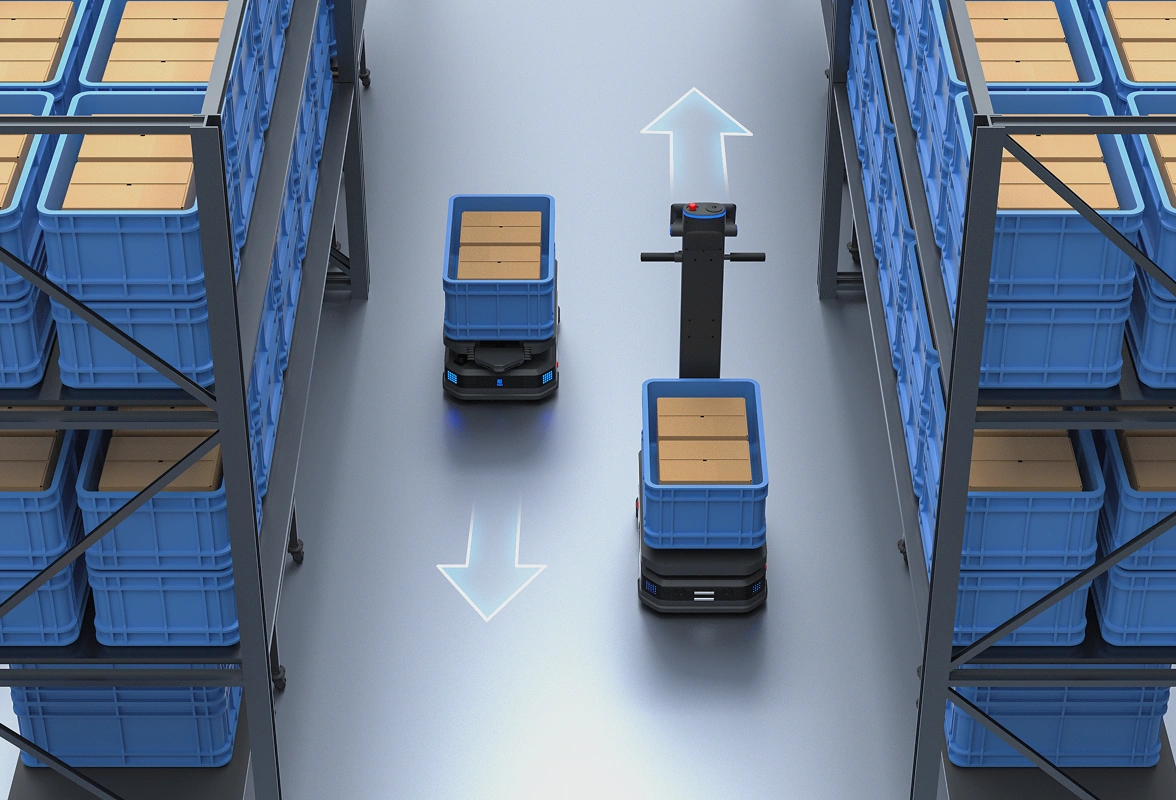

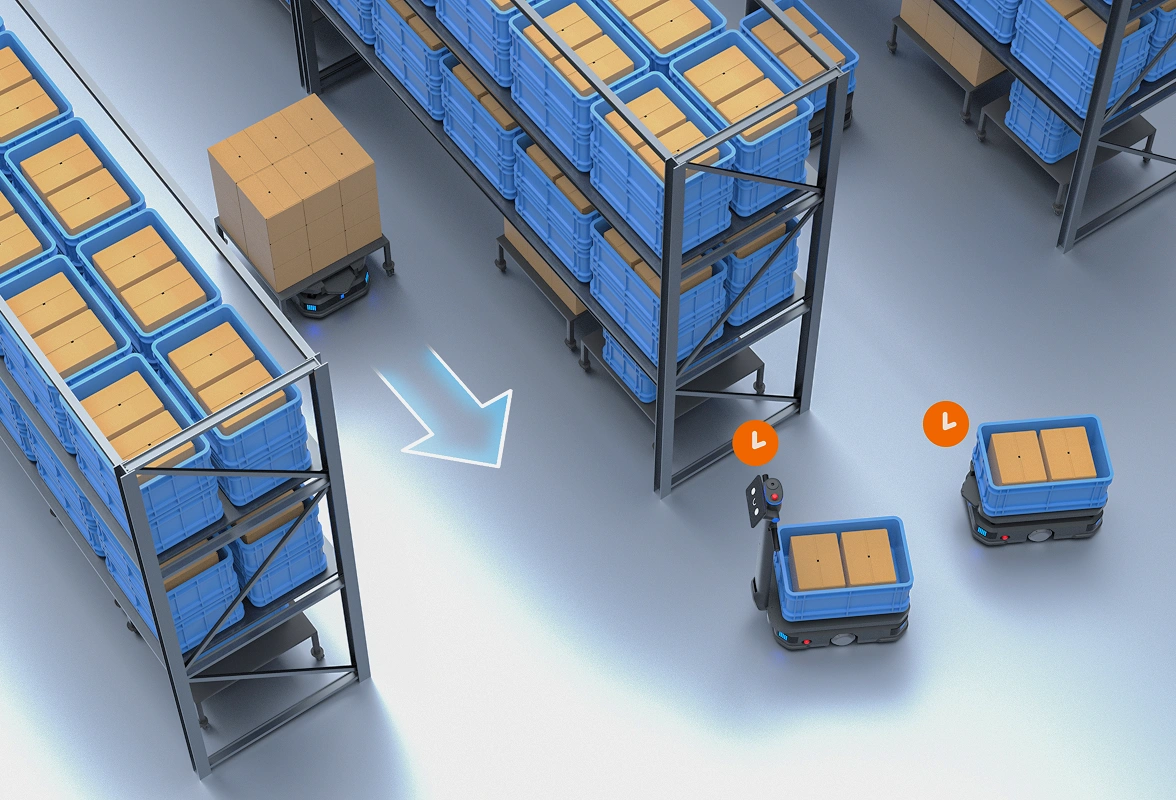

Narrow-aisle traffic strategy
Robot factors in aisle width and load size, yields to oncoming traffic and keeps a safe distance.
Flexible deployment
The T600 series adapts to layout changes fast — no long reconfiguration or facility rework.
Industrial standards and deployment
On-premises deployment
Full isolation: all processing and storage in the customer's infrastructure.
Site safety

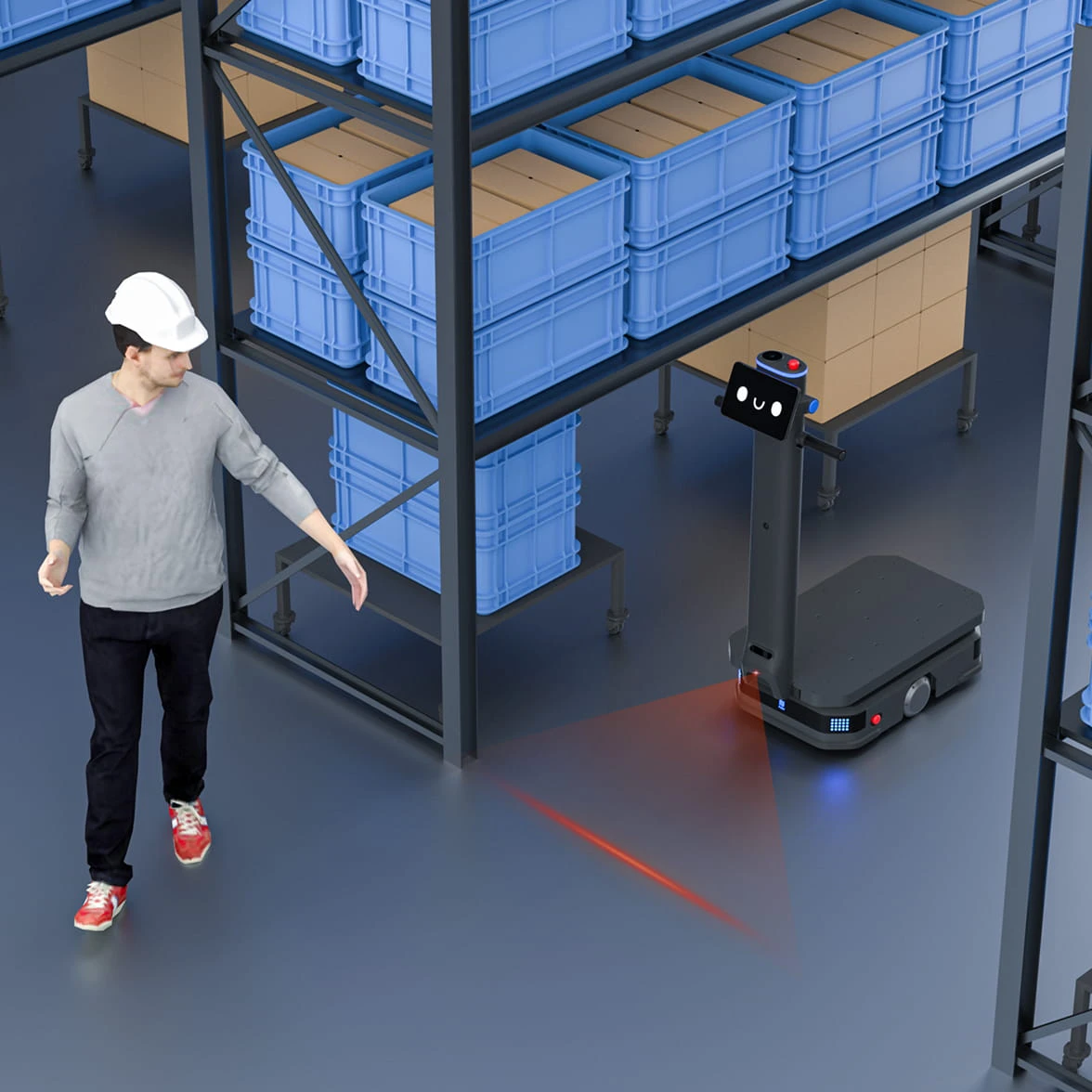

Ground projection
A warning line in front of the robot shows the travel zone — people and carts see where not to step.

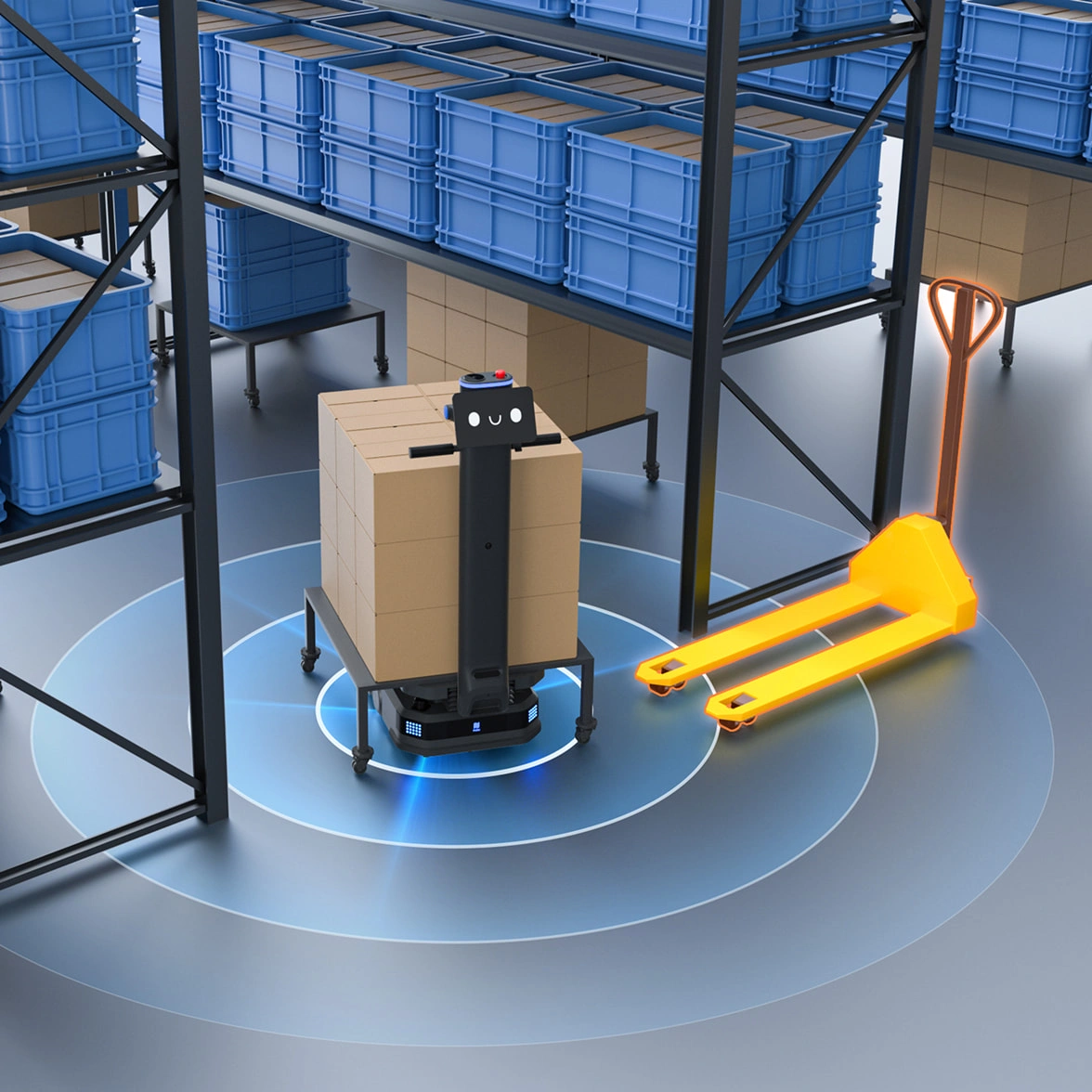

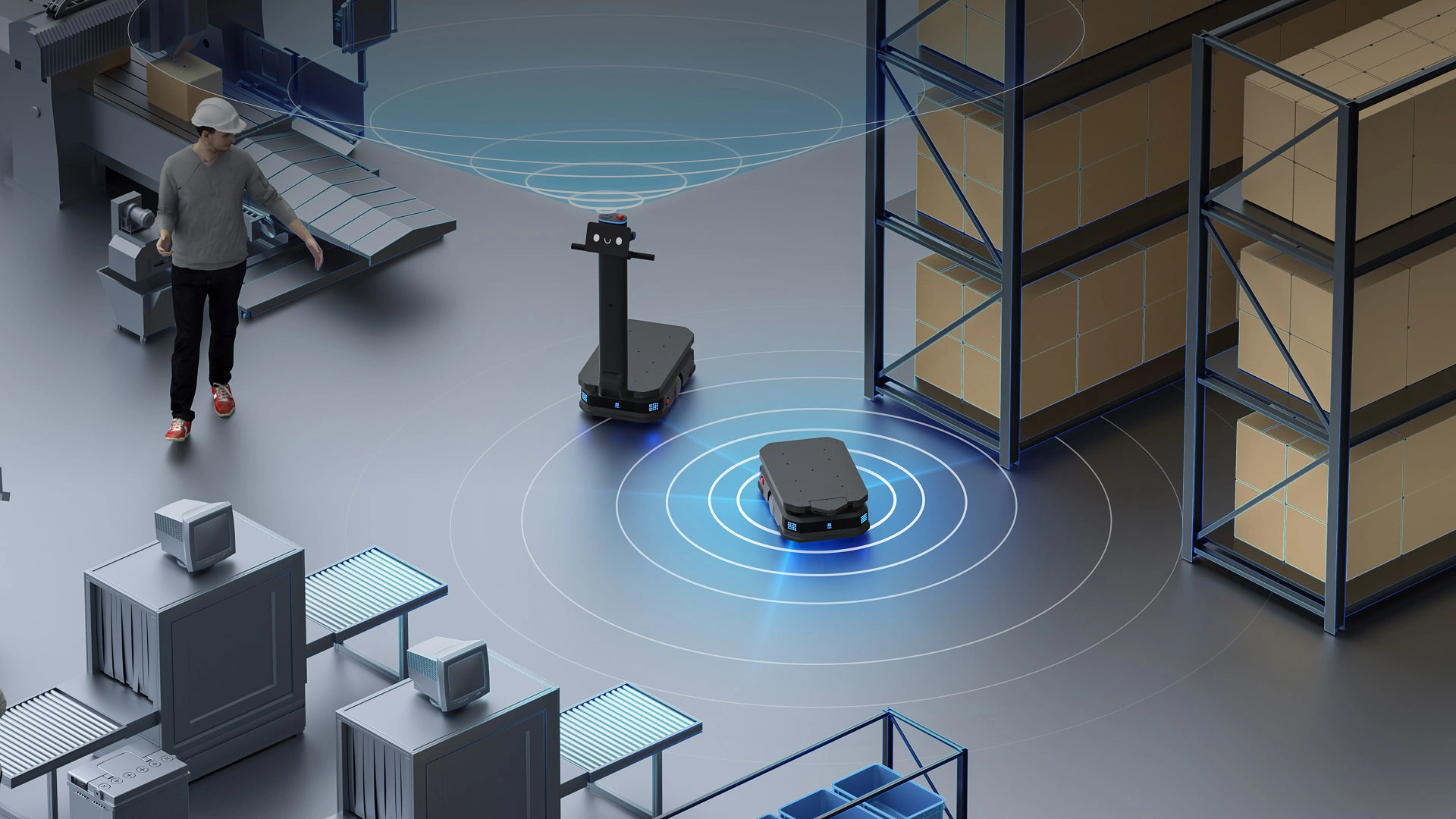

Dynamic obstacle avoidance
Robot spots low obstacles and flexibly navigates around them.
Disaster avoidance
A dedicated disaster-avoidance module stops the robot if it leaves the perimeter.

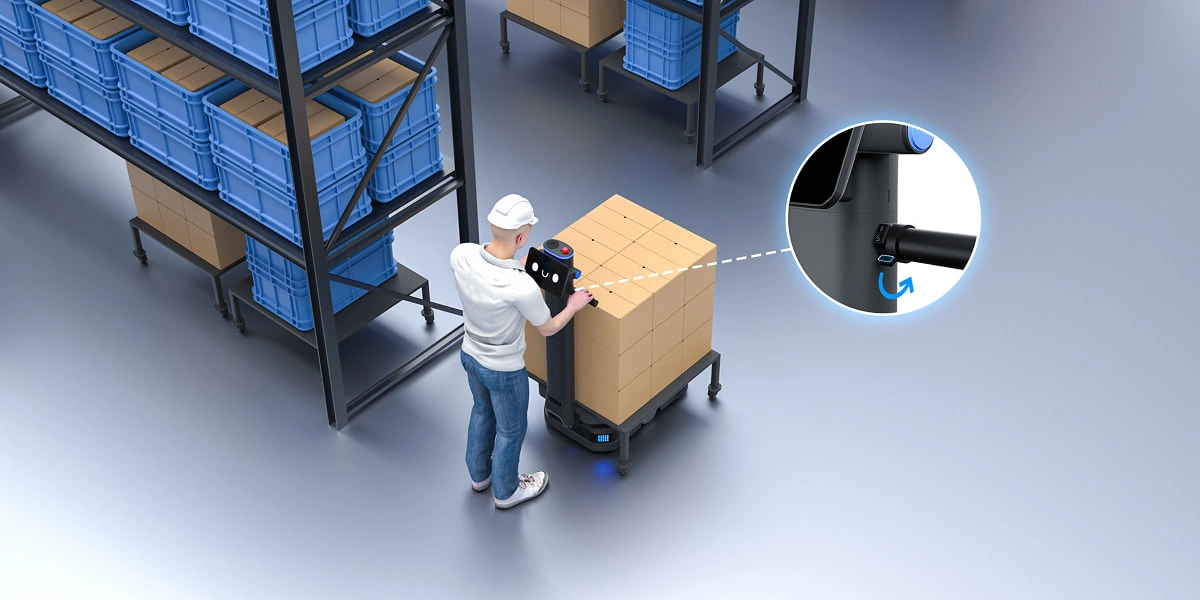

Power-assist for manual moves
An ergonomic handle with a switch: the operator pushes by hand, the motor takes the load.
Not for Underride
Available on standard T600 only.
24/7 non-stop operations

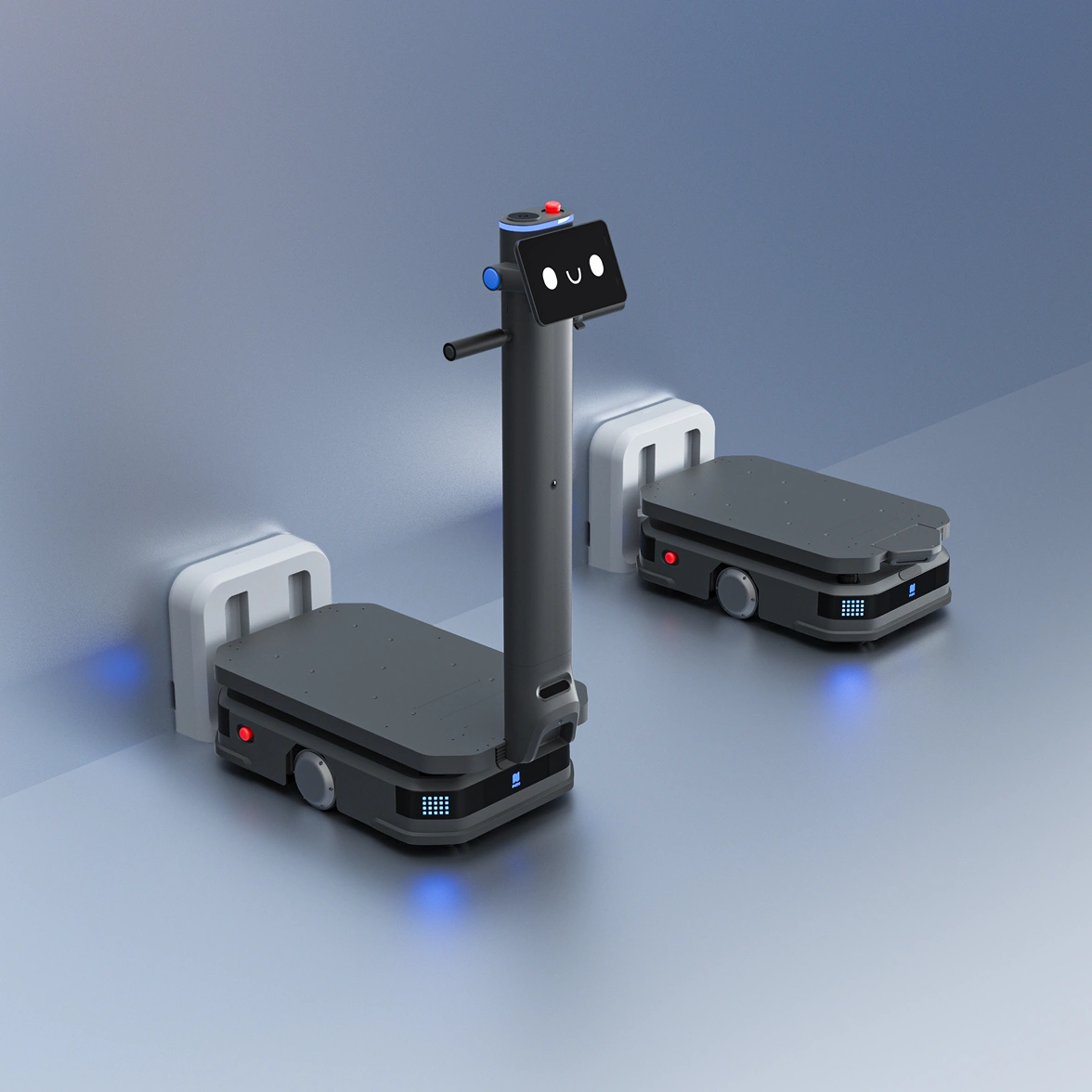

12 h run-time plus a 2 h fast charge. Auto-charge and battery swap cover the day without downtime.
12 h / 2 h
Run-time / charge time

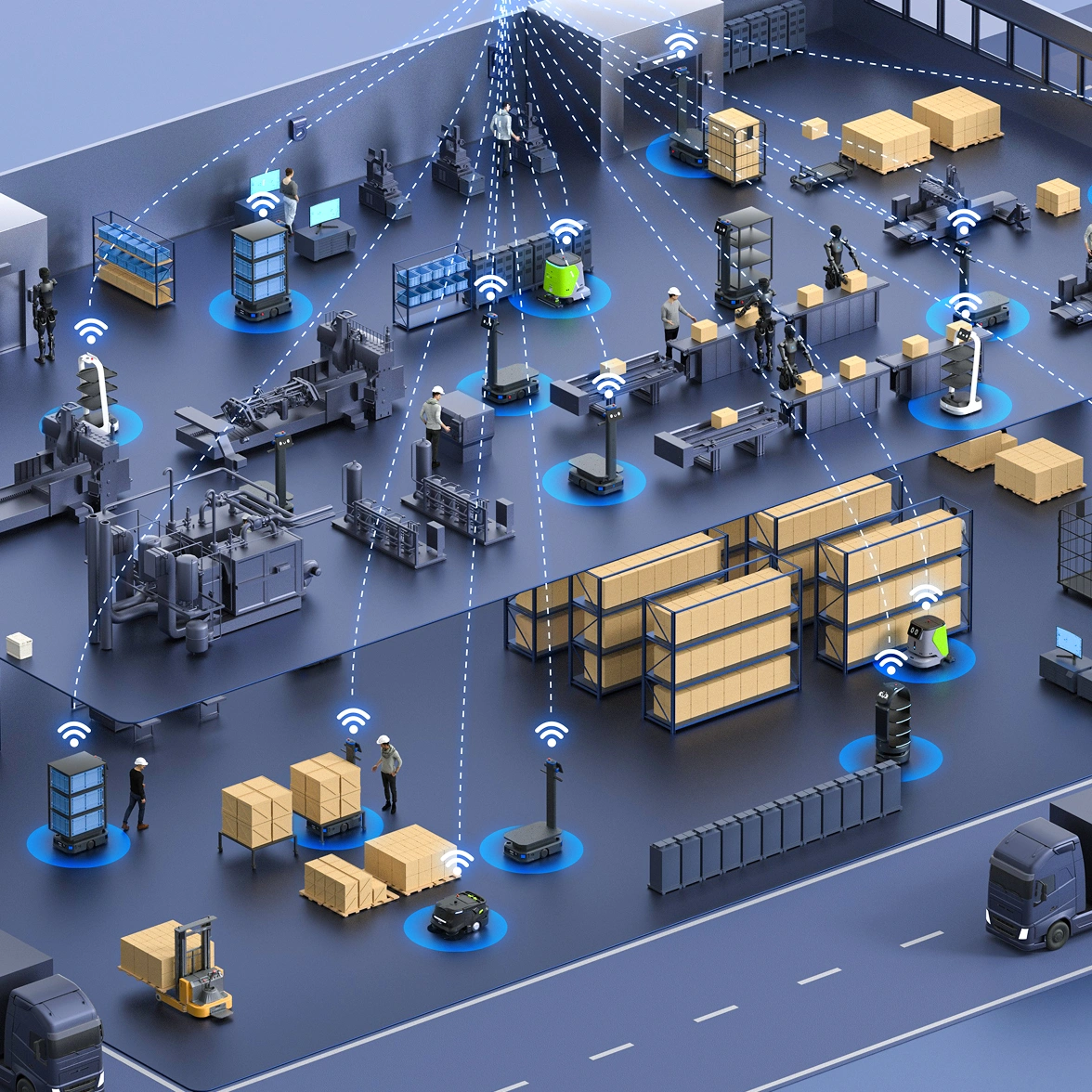

IoT integration
E-gates, elevators, pagers and the PUDU Link app.
E-gate control
Elevator control

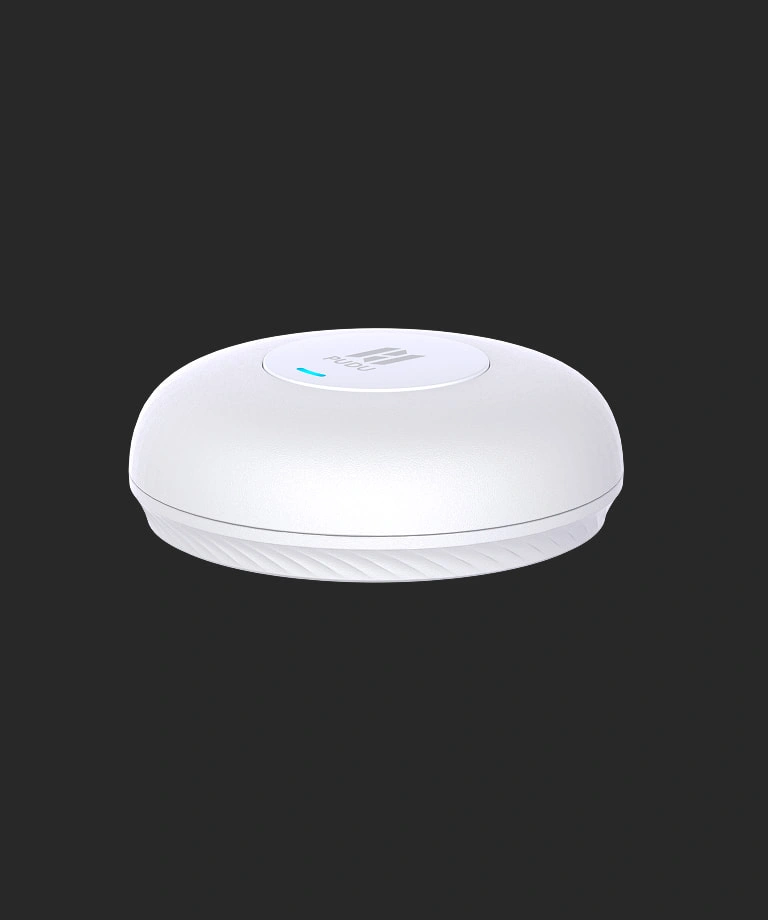

Call with pager

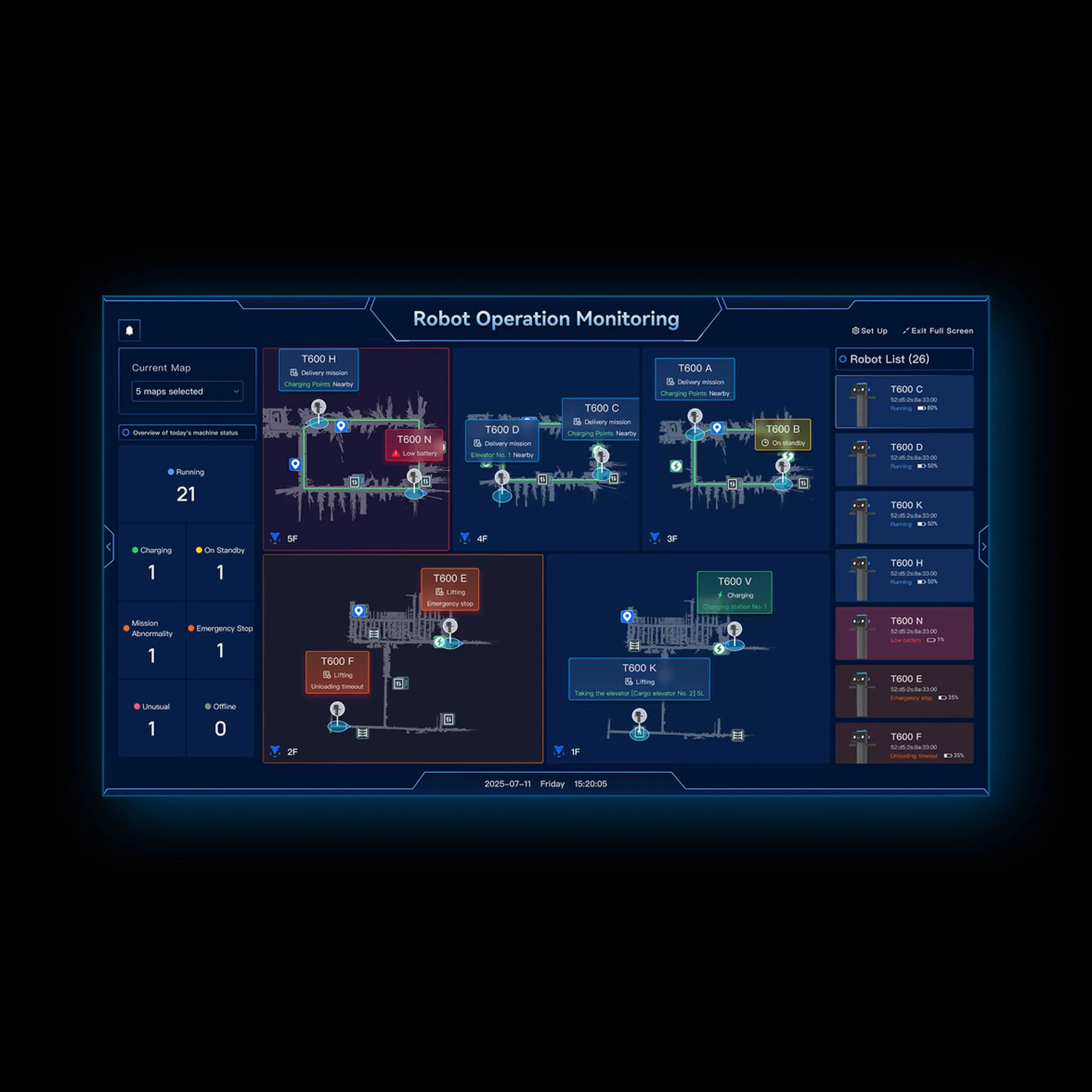

Manage with Pudu Link
Product Overview

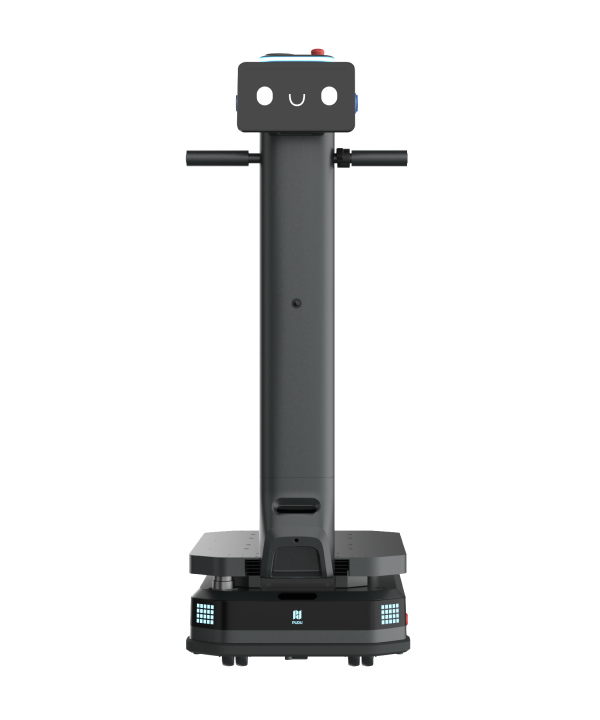

PUDU T600
- Dimensions
- 960 × 500 × 1350 мм
- Weight
- 112 кг
- Maximum load
- 600 кг
- Battery Capacity
- 30 А·ч
- Charging Time
- 2 ч (0–90 %)
- Run-time
- 12 ч (без нагрузки)
- Cruise Speed
- 0,2–1,2 м/с
- Max. surmountable height
- 10 мм
- Max. surmountable gap
- 35 мм
- Operating Environment
- 0–40 °C
- Protocol
- VDA5050
- Navigation Method
- VSLAM + LiDAR SLAM
- Minimum Passability
- 70 см
- Power-assist
- Поддерживается
- Ground projection
- Поддерживается
- Chassis
- Стандартная палуба

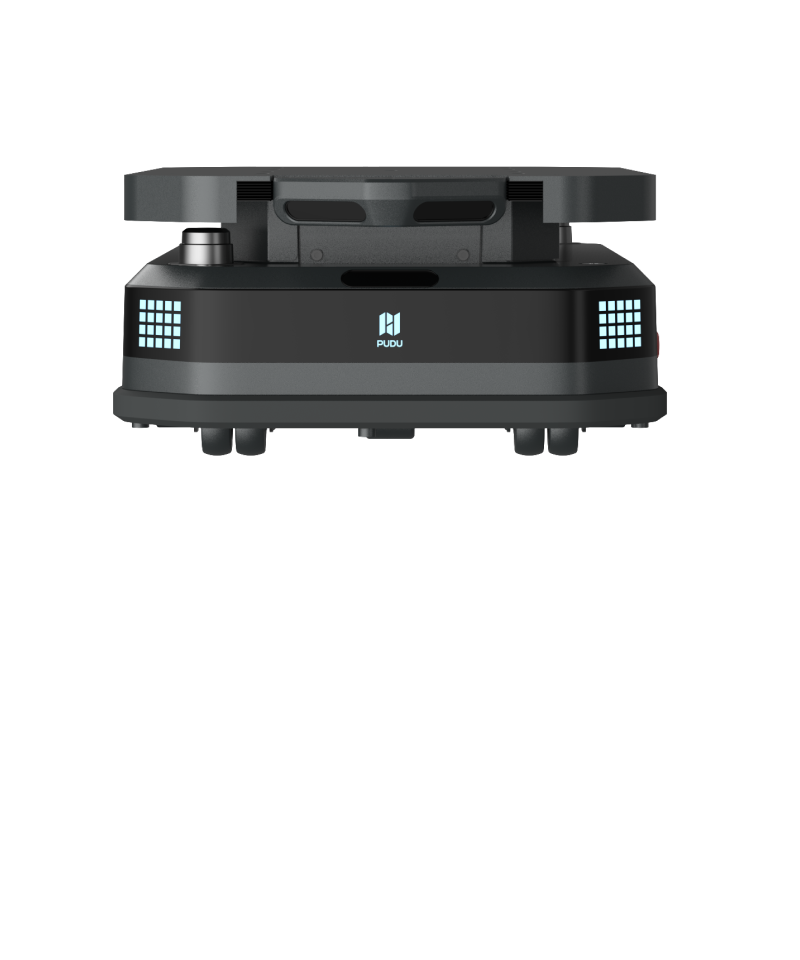

PUDU T600 Underride
- Dimensions
- 845 × 500 × 255 мм
- Weight
- 94 кг
- Maximum load
- 600 кг
- Battery Capacity
- 30 А·ч
- Charging Time
- 2 ч (0–90 %)
- Run-time
- 12 ч (без нагрузки)
- Cruise Speed
- 0,2–1,2 м/с
- Max. surmountable height
- 10 мм
- Max. surmountable gap
- 35 мм
- Operating Environment
- 0–40 °C
- Protocol
- VDA5050
- Navigation Method
- LiDAR SLAM
- Minimum Passability
- 65 см
- Power-assist
- Не поддерживается
- Ground projection
- Не поддерживается
- Chassis
- Плоское подкатное
PUDU T600
Heavy-payload AMR
